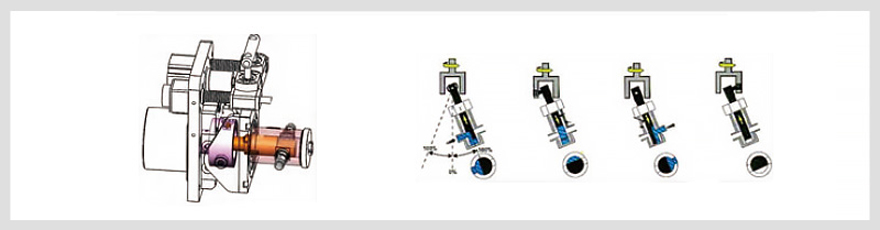

When pump starts to operate, change the angle of rotation by the linear motor to adjust volume of ceramic pump. The main motor pushes pump module to do rotational motion motion is to change valve direction. Reciprocating motion is to switch fluid inlet and out direction for dispensing(refer to chart).

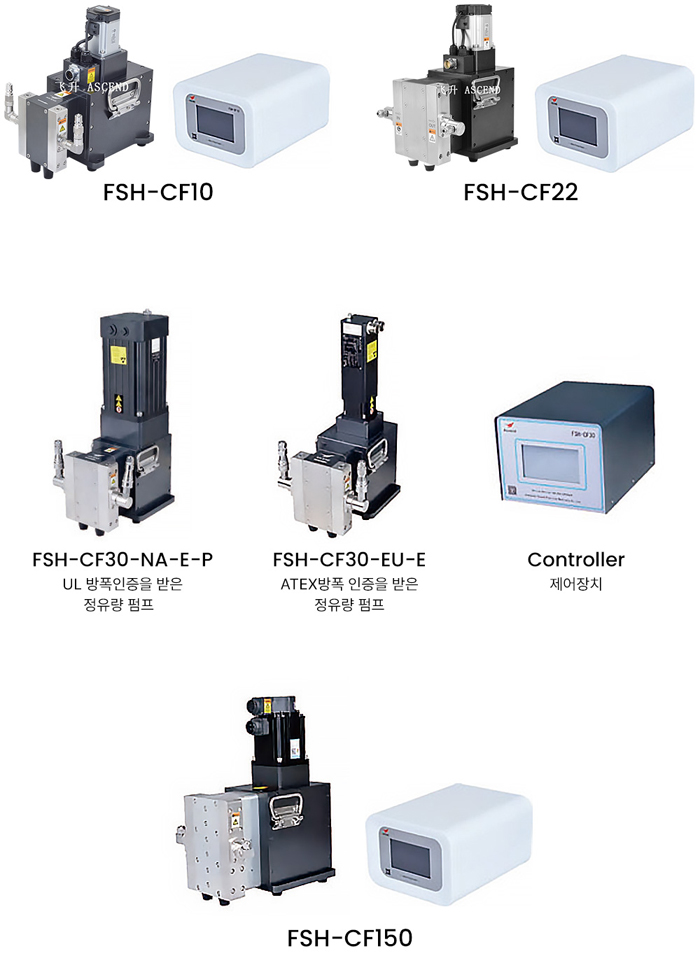

FSH-CF series is the latest pulse free high efficiency constant flow metering pump system developed by Asce The system consists of a digital controller and a pulse free constant flow pump body. FSH-CF series is a hi high precision, high reliability digital control system based on micro-meter precision machining technology The system maintains high precision dispensing with maximum injection efficiency. FSH-CF series pum perfect solution for automatic injection and filling lines as well as fully automatic factories. The system can be widely used in lithium battery electrolyte injection, chemical dispensing, pharmaceutic drug dispensing, liquid food dispensing, etc.

Special Constant Flow Driving Technology:

In order to maintain constant fluid flow from the system, FSH-CF pump uses a special co mechanism device. The motor drives the device to complete fluid inlet and outlet dispensing pump uses micro-meter high precision machining technology to ensure its dispensing accurac better.

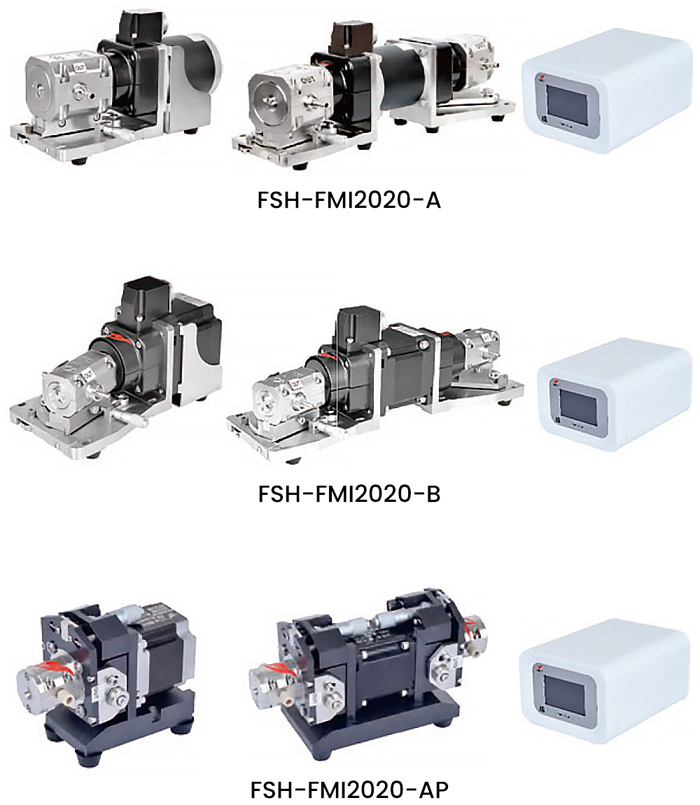

FSH – FMI 2020 series standard of high-precision fluid dispensing / filling system consists of a digital controller, stepper motor base and one or two high precision rotar y ceramic pump modules driven by stepper motor. The system’s flexible design allows customers for easy system integration.
