ALL PFA Filter Cartridges
GRACE
- Filter is constucted of PTFE membrane and PFA parts
- Designed for high temperature, high corrosion & non-dissolution process
- Bubble Point Test passed
- Integrity Test passed

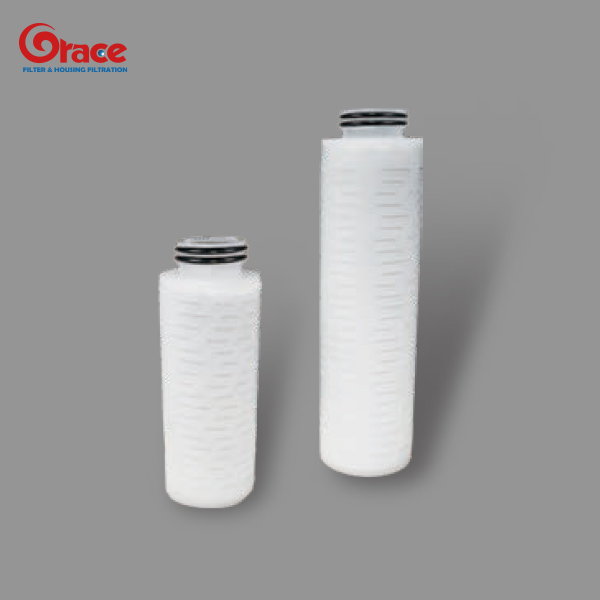

ALL PFA Filter Cartridges for Chemicals
| Material | PFA |
| Filter Media | Hydrophilic PTFE |
| Inlet/Outlet | 3/4″、1″ Swagelok |
| Vent/Drain | 1/2″ Swagelok |
| Micron Rating | 0.03、0.05、0.1、0.2μm |
| Max. Working Temperature | 180℃ |
| Operation Data | ∆P : 5.8 bar at 25℃, 0.97 bar at 180℃ |
| Applications | Etchants, Fine Chemicals, High temperature corrosion process |

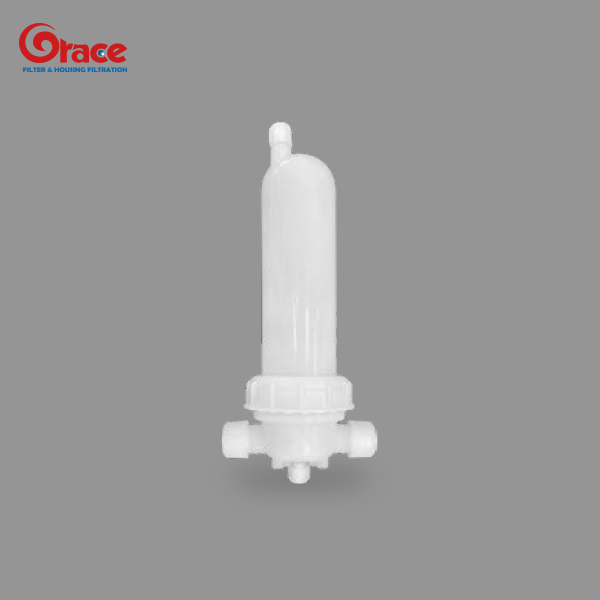

ALL PFA Filter Housings
| Material | PFA |
| Specification | 10 inch |
| Inlet/Outlet | 1″ Swagelok |
| Vent/Drain | 1/2″ Swagelok |
| Operation Data | 8.0 bar at 25℃ |
